xTool Honeycomb Panel for S1
xTool
SKU: XTL-S1-HONEYCOMB-ACC
Increments of 1
Minimum of 1
Maximum of
Low stock
In stock, ready to ship
Sale price
€185,00 EUR
-100%
Regular price
Regular price
€185,00 EUR
Unit price
per
Tax included.
Shipping calculated at checkout.
xTool Honeycomb Panel for S1
Sale price
€185,00 EUR
Regular price
Regular price
€185,00 EUR
Unit price
per
Couldn't load pickup availability
Have a question?
Description

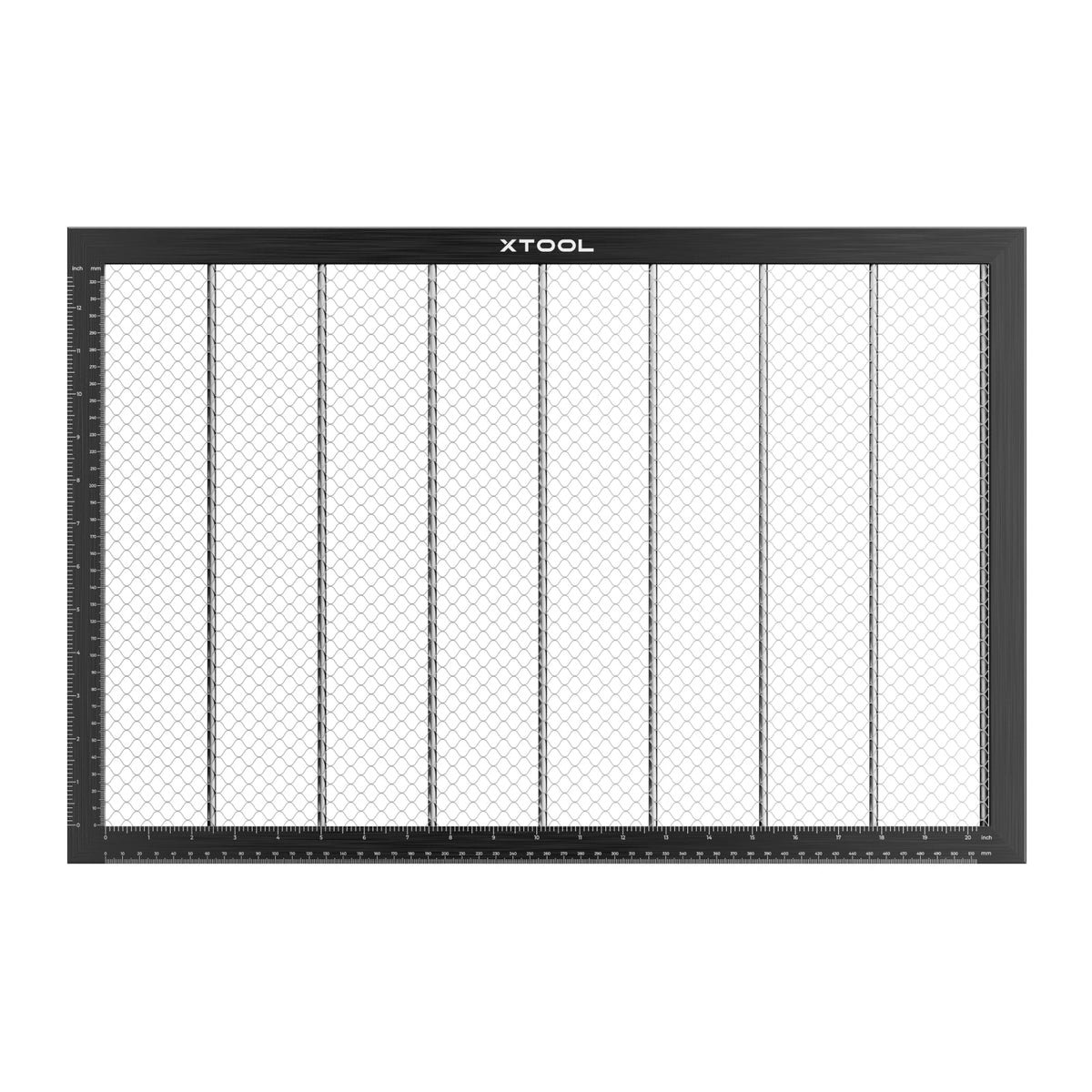

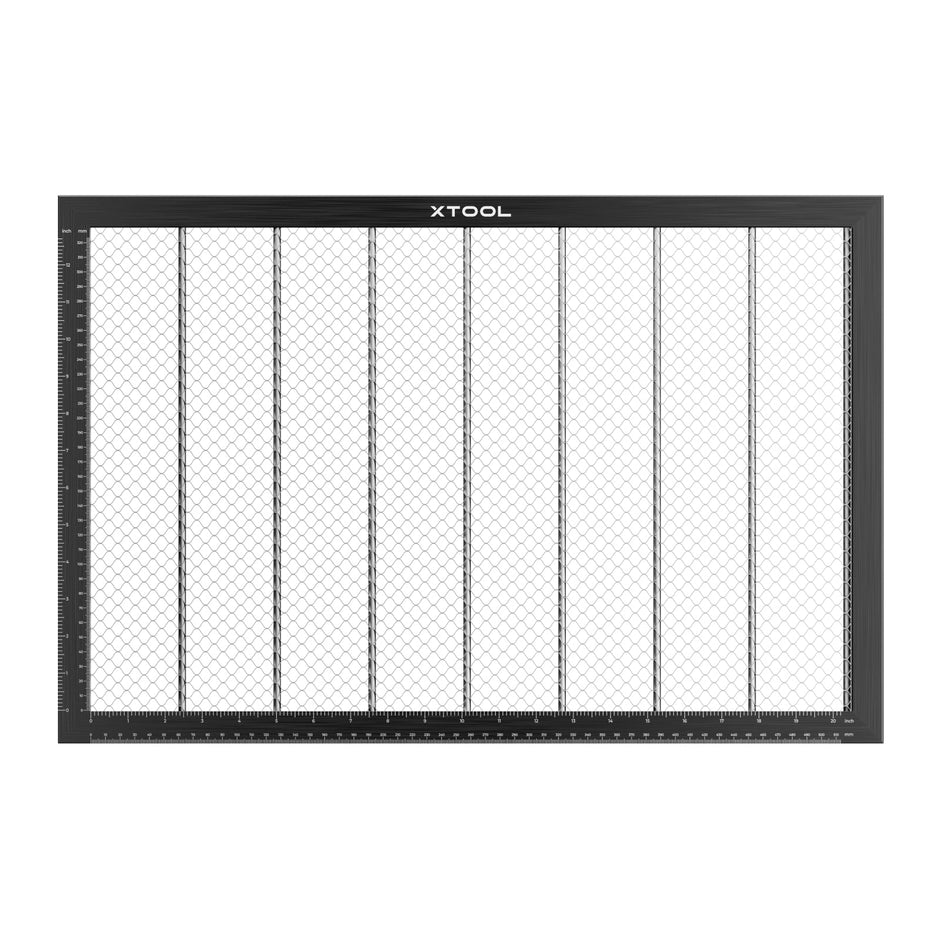

The xTool Honeycomb Panel for S1 is xTool's official cutting bed for the xTool S1 enclosed diode laser. It lifts the workpiece off the machine's base plate on a steel honeycomb grid, so smoke and heat escape underneath instead of bouncing back into the material. The result is smoother edges and fewer scorch marks and oily smoke stains on the back of cut-through parts. Nine 5 mm steel bars and a 22 mm deep panel give it a 5 kg load capacity.
Key Specifications
| Compatibility | xTool S1 (20W and 40W) |
| Construction | Steel honeycomb, 9 × 5 mm steel bars, 22 mm panel |
| Load capacity | 5 kg |
| Feet | 5 mm anti-slip pads |
| Scales | Inch and cm on both axes |
| Product size | 565 × 375 × 27 mm |
| Product weight | 2.345 kg |
| Package | 653 × 448 × 72 mm, 3.0 kg |
Why Cut on a Honeycomb

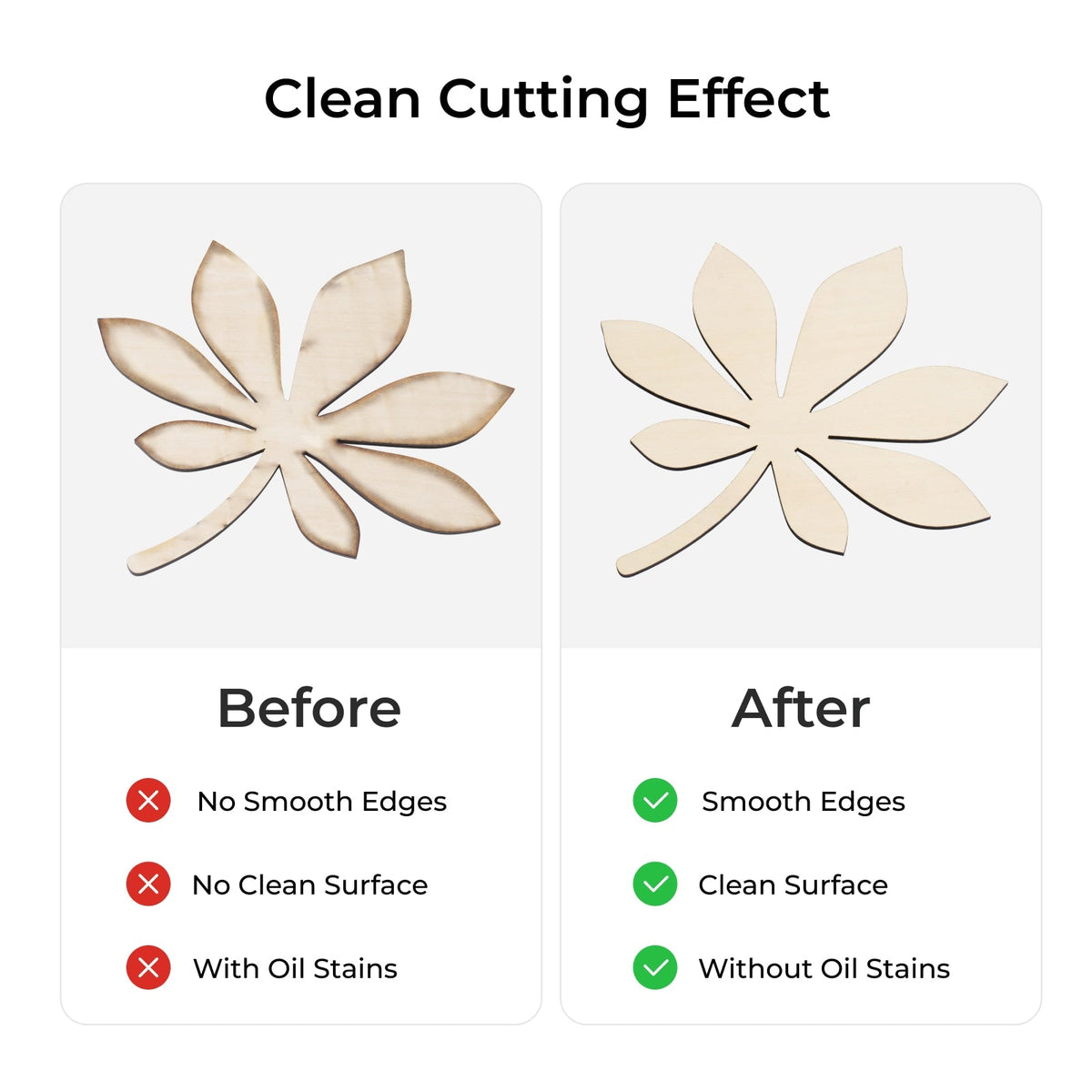

When a diode laser cuts straight through wood, acrylic or leather, the beam and the hot gases it creates hit whatever lies underneath. On a flat surface they reflect back and leave burn marks, smoke stains and rough edges on the underside. The open honeycomb cells let air circulate and smoke diffuse downwards, which reduces carbonisation and keeps both faces of the part clean.
Holding and Measuring Materials

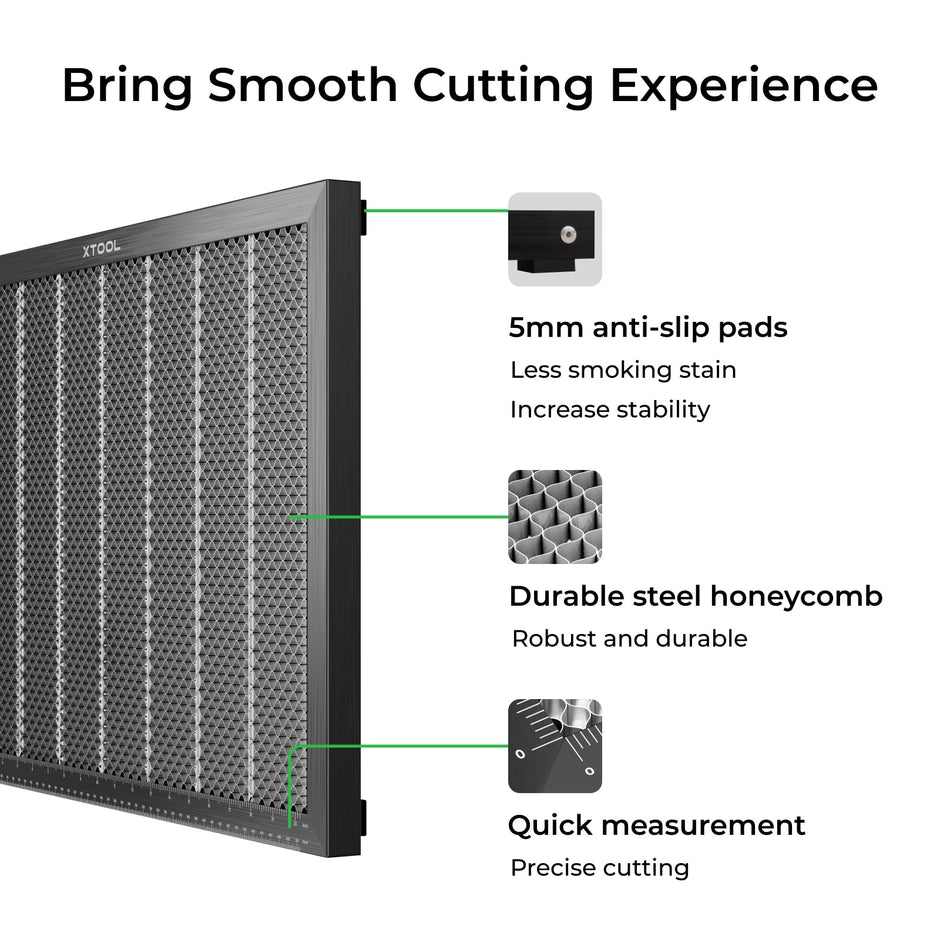

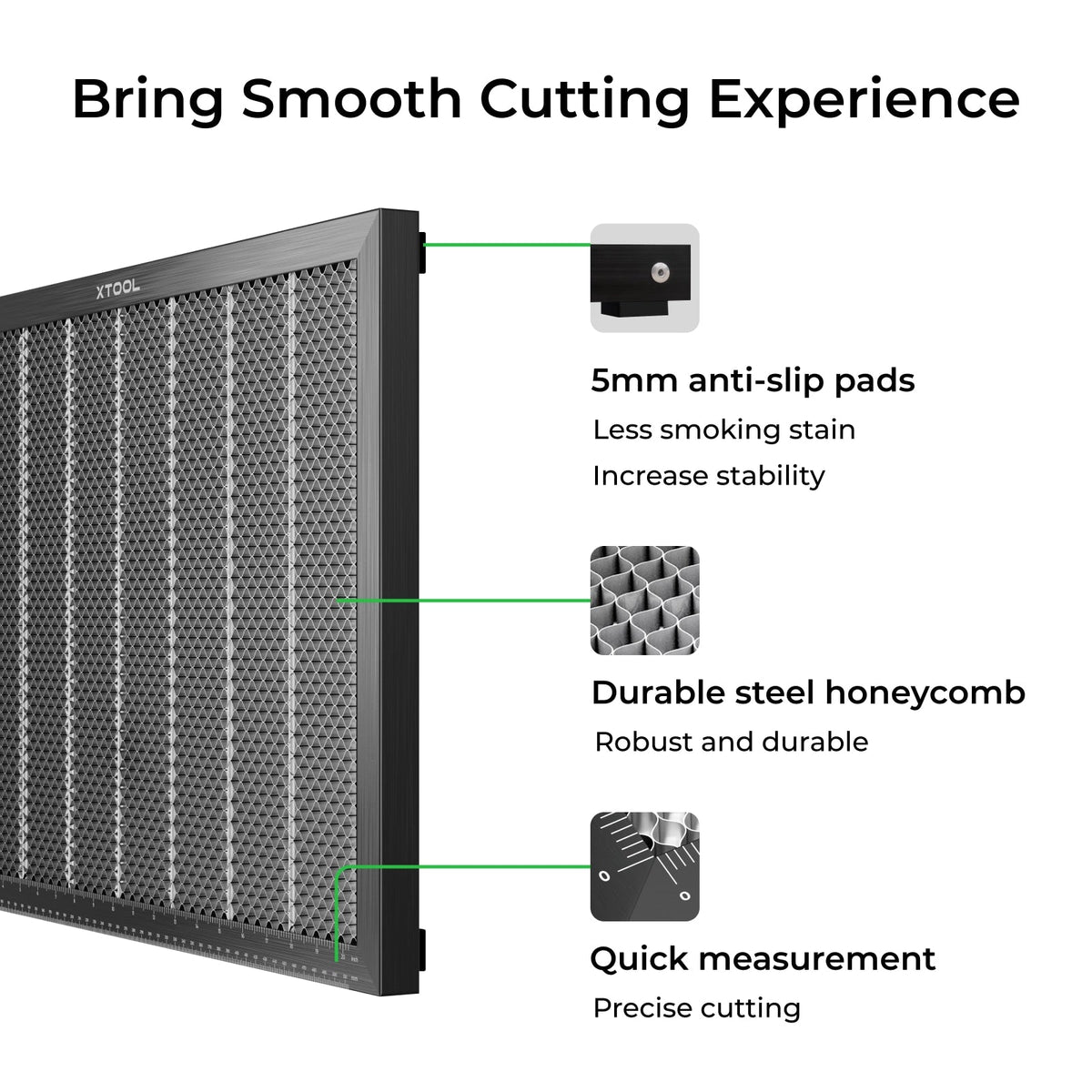

Four magnetic material pins are included to hold thin or slightly warped sheets flat and in place, keeping alignment precise across the whole job. Both axes carry inch and centimetre scales for quick measuring, and the 5 mm anti-slip pads stop the panel from shifting inside the machine.
Compatibility
Made for the xTool S1 enclosed diode laser cutter, in both its 20W and 40W versions. It can also be used with the xTool S1 Riser Base. It is not sized for other xTool machines.
Who It's For
- S1 owners who cut through plywood, MDF, acrylic, felt or leather
- Makers selling finished pieces where a clean back face matters
- Workshops replacing a worn or warped cutting bed

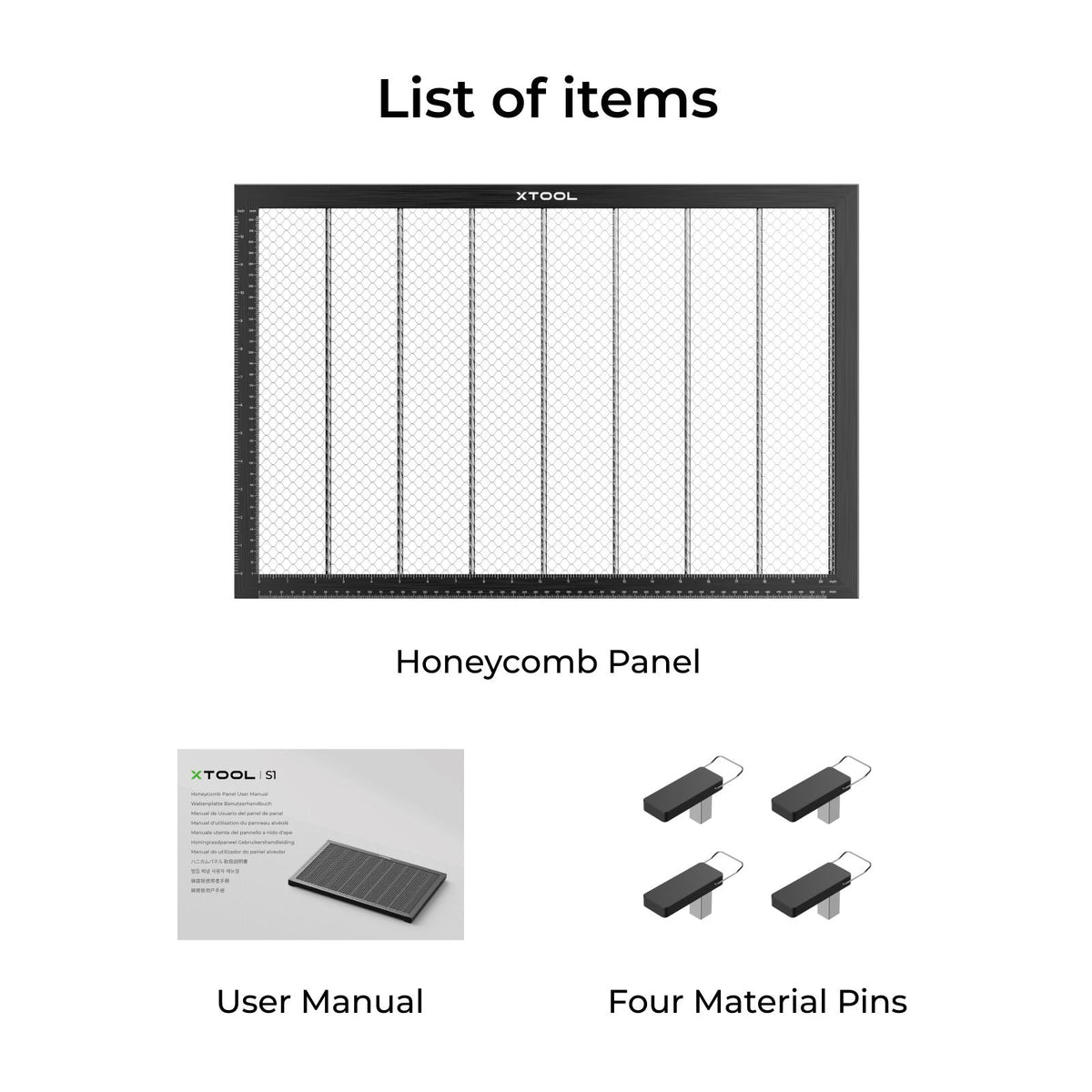

What's in the Box
- xTool S1 Honeycomb Panel
- 4 magnetic material pins
- User manual
Available from Eolas Prints
Eolas Prints is an official xTool reseller based in Cantabria, Spain, shipping across Spain and the EU. EU warranty and support included. Need the machine as well? See the xTool S1 enclosed diode laser cutter.
